Product Details:
Payment & Shipping Terms:
|
| Start Method: | Electric Auto Start | ||
|---|---|---|---|
| Highlight: | compact marine generator,marine generator set |
||

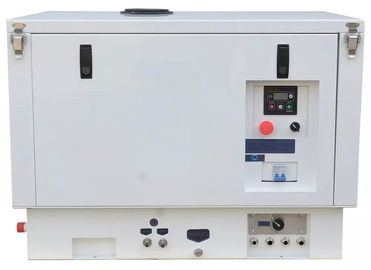

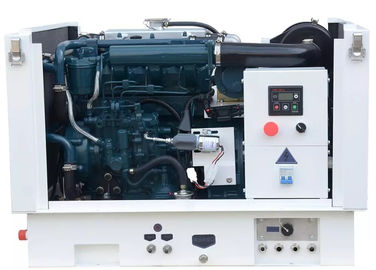

Compact 5kw marine diesel generator for yacht portable single phase sea water cooled
The 5kw marine diesel generator is equipped with heavy duty marine diesel engine and reliable alternator and controller .
The Marine Diesel Generator is widely used in excursion boats, yachts, fishing boats and other projects.
Advantage:
| Generator Set | Model | GNRM5 |
| Rated power(KW) | 5 / 6 | |
| Rated voltage(V) | 115/230 120/240 | |
| Rated frequency(Hz) | 50 60 | |
| Waveform distortion | Sinewave, distortion ≤5% | |
| Noise level(dB@7m) w/100% load | 60 | |
| Overall dimension | ≤880x625x650 | |
| (L×W×H)(mm) | ||
| Overall weight(kg) | ≤320 | |
| Fuel tank capacity(L) | Share fuel tank with marine vehicle | |
| Type | Three cylinder, direct injection, four stroke,water cooled | |
| Bore×Stroke(mm) | 75×82 | |
| Rotation speed(r/m) | 1500 /1800 | |
| Governor system | Mechanical | |
| Starting mode | 12V DC electric start | |
| Filter system | Water cooled air filter, fuel filter, oil filter | |
| Cooling type | External cooling by river water or sea water | |
| Heat exchanger(L) | 12 | |
| Muffler | Water-cooled | |
| Fuel consumption(g/kw.h) | ≤210 | |
| Oil capacity(L) | 4 | |
| Alternator | Rated power(KW) | 5 / 6 |
| Excitation mode | Brushless, self-excitation | |
| Voltage regulation | Auto regulation | |
| Number of phase | Single phase, three wire | |
| Number of pole | 4 | |
| Insulation grade(stator/rotor) | H/H | |
| Voltage regulation range w/o load | ≥95%~105% | |
| Steady-state voltage deviation | Less ±1% | |
| Interference factor | TIF<50,THF<2% | |
| IP grade | IP23 | |
| Control panel | Control on power output | Remote cable electric switching ABB circuit breaker |
| Installation | Remote cable connected | |
| Auto function | Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm | |
| Parameter display | AC voltage, frequency, running hour, charging voltage |
